Hyperlite — Signage Face Illumination with Customisable Length & Pitch
Signage face illumination / high brightness lighting solution.
Signage face illumination / high brightness lighting solution

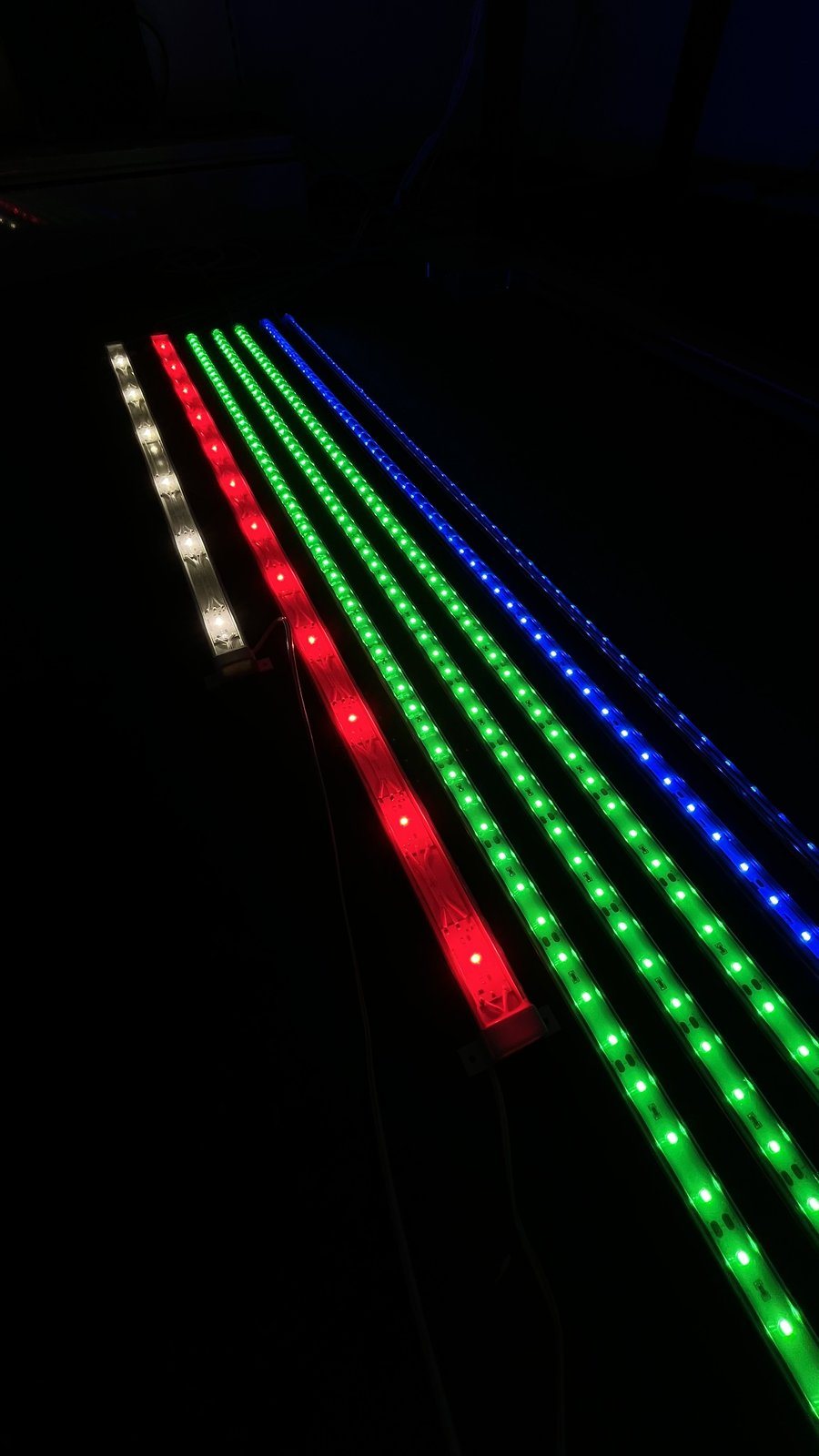

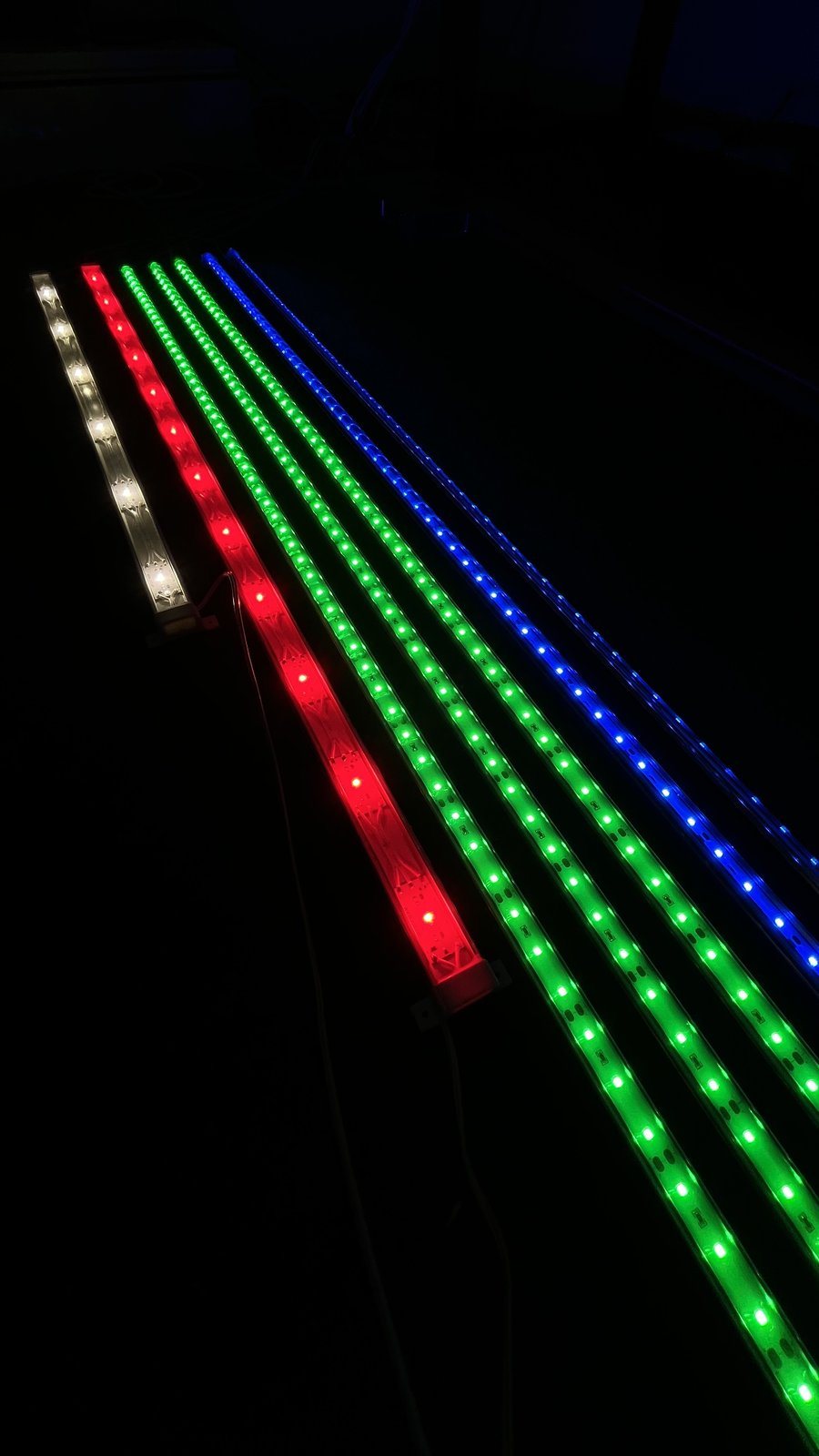

Hyperlite is a modular LED lighting system designed for signage face illumination. Featuring high brightness output, customisable length, adjustable LED pitch, and aluminium housing for excellent heat dissipation, it delivers reliable and uniform illumination for outdoor signage applications.
Key Features
- High brightness output
- Custom length available
- Adjustable LED pitch
- Aluminium housing for heat dissipation
- UV-resistant cover
- IP65 outdoor protection
- Field-cuttable (White: every 3 LEDs / Red: every 4 LEDs)
Key Specification
| Input voltage | 12V DC |
|---|---|
| Protection rating | IP65 |
| Lifespan | ≥50,000 hours |
| Housing | Aluminium |
| Cover | UV-resistant |
| Cutting interval | White — every 3 LEDs / Red — every 4 LEDs |
| Warranty | 3 years standard, extendable to 5 |
Housing & build
The extrusion is the same for both colours. Overall length is made to order — the 602 mm build on the drawing is one reference configuration, not a fixed size.
| Overall length | Custom (602 mm shown on the drawing) |
|---|---|
| Housing width | 27.30 mm |
| Internal PCB width | 19.40 mm |
| Housing height | 13.40 mm |
| Lens thickness | 0.90 mm |
| Material | Aluminium extrusion + UV-resistant PC cover |
| End cap | UV-resistant injection moulded |

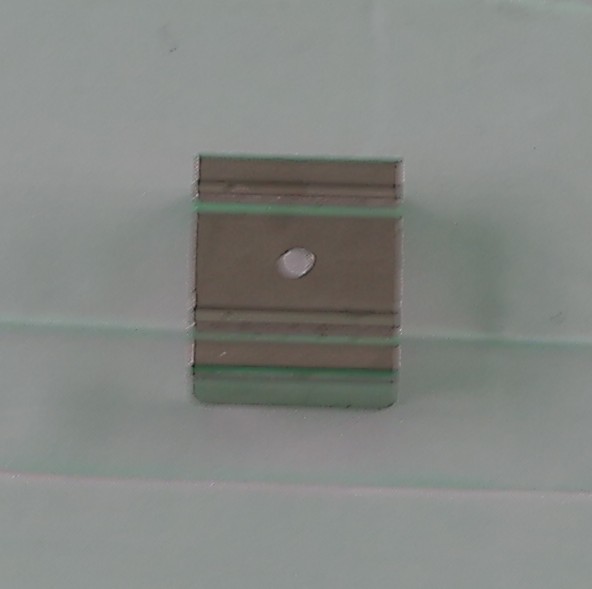

| Mounting | Stainless steel clip (304 grade, anti-corrosion) |

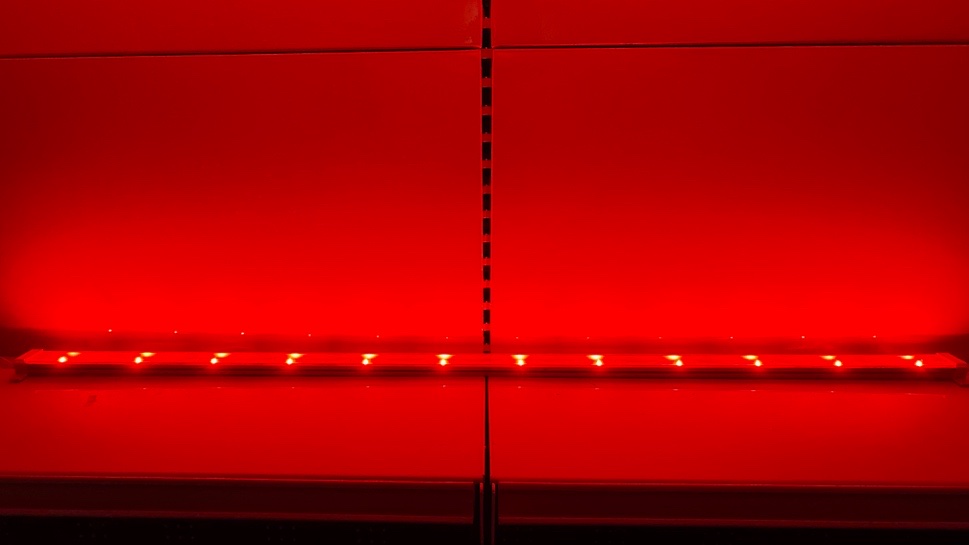

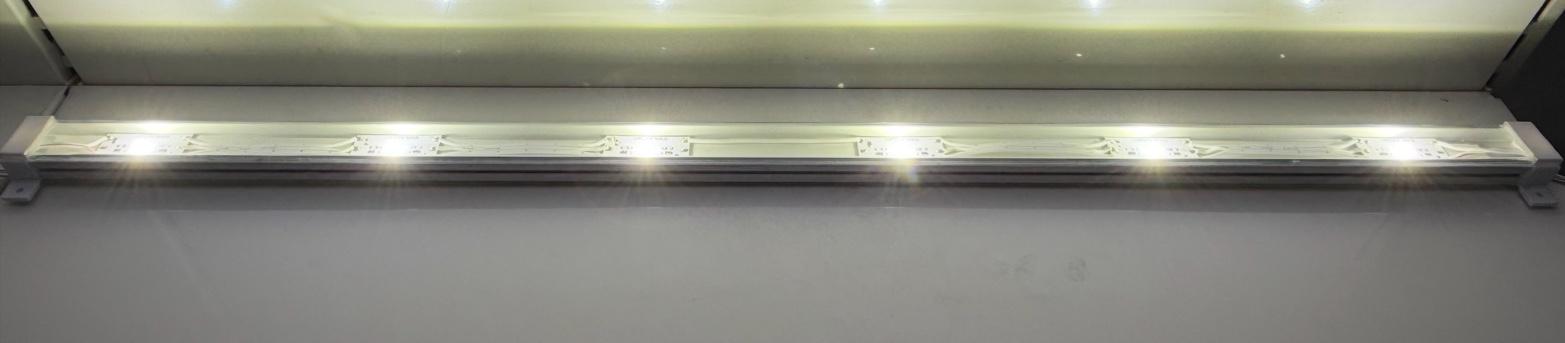

Red module vs white module
Same housing, two LED builds. The white module is brighter and cuts every 3 LEDs; the red module runs cooler and cuts every 4.
| Item | Red module | White module |
|---|---|---|
| LED type | CREE Red LED | CREE White LED |
| Wavelength / CCT | 620~625 nm | 6500K |
| Module dimensions | 40 x 19 mm | 40 x 19 mm |
| Power consumption | 0.75W~0.9W per module | 1.1W~1.3W per module |
| Luminous output | 75 lm/module | 170 lm/module |
| Viewing angle | 140° | 115° |
| Voltage input | 12V DC | 12V DC |
| Cutting unit | Every 4 LEDs | Every 3 LEDs |
| Waterproof rating | IP65 | IP65 |
| Operating temperature | -20°C to +50°C | -20°C to +60°C |
Installation Flexibility
Hyperlite supports customisable lengths and adjustable LED pitch, allowing installers to optimise brightness distribution for various signage sizes and layouts. The field-cuttable design enables quick on-site adjustment without compromising performance.
Cut at the marked joint with a side cutter, re-terminate at the exposed pads, seal — no return to the factory.
Schematic drawing, not to scale — LED count and spacing are illustrative. Gold marks show the solder pads exposed by the cut. Cutting anywhere other than a marked joint breaks the circuit for that segment.
Application

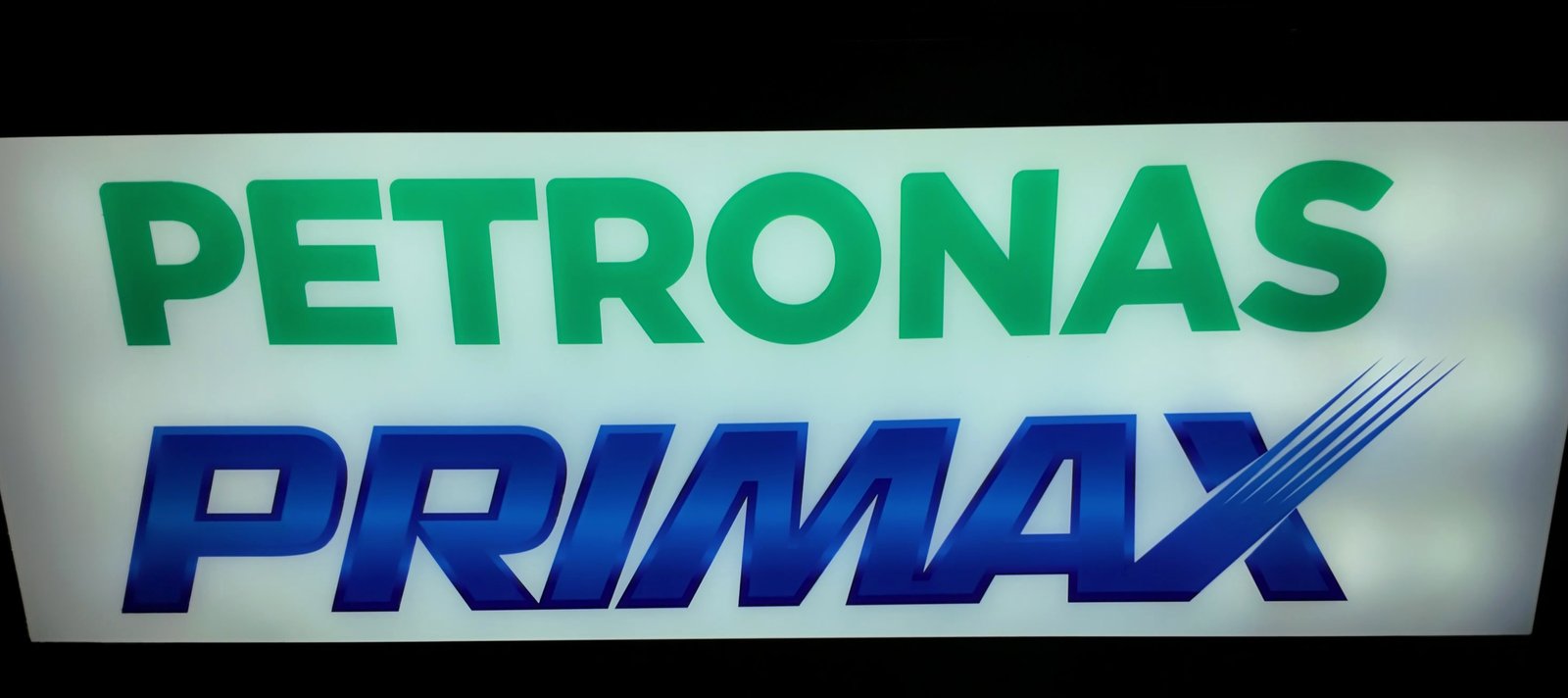

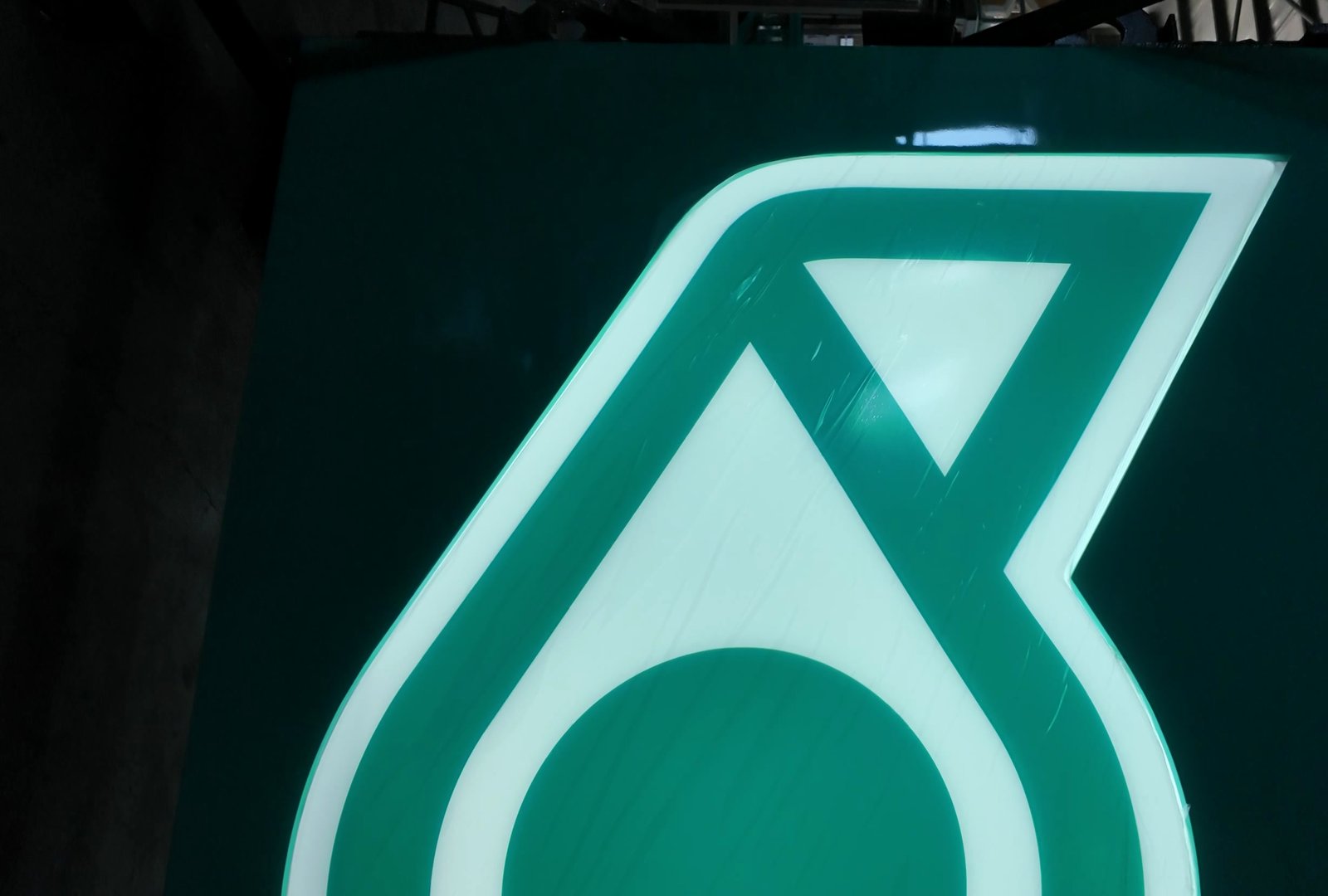

Ideal for petrol station signage, illuminated signboards, lightboxes, channel letters, and other outdoor display applications requiring high brightness and uniform illumination.
Datasheet
Download the Hyperlite datasheet.
Light your signage the right way
Tell us your signage size and layout and we'll spec the right Hyperlite length, pitch and configuration for the job.
