Edge Lighting Strip
Coloured edge and fascia lighting — a sealed silicone-and-aluminium strip for forecourt canopy edges, fascia lines and signage returns.
One continuous line of colour along an edge
The AVS edge lighting strip runs a clean, unbroken line of colour along a canopy edge, a fascia, a counter line or a signage return. The LEDs sit in an aluminium profile under a PC cover and are sealed in silicone, so the strip goes outdoors and stays sealed.

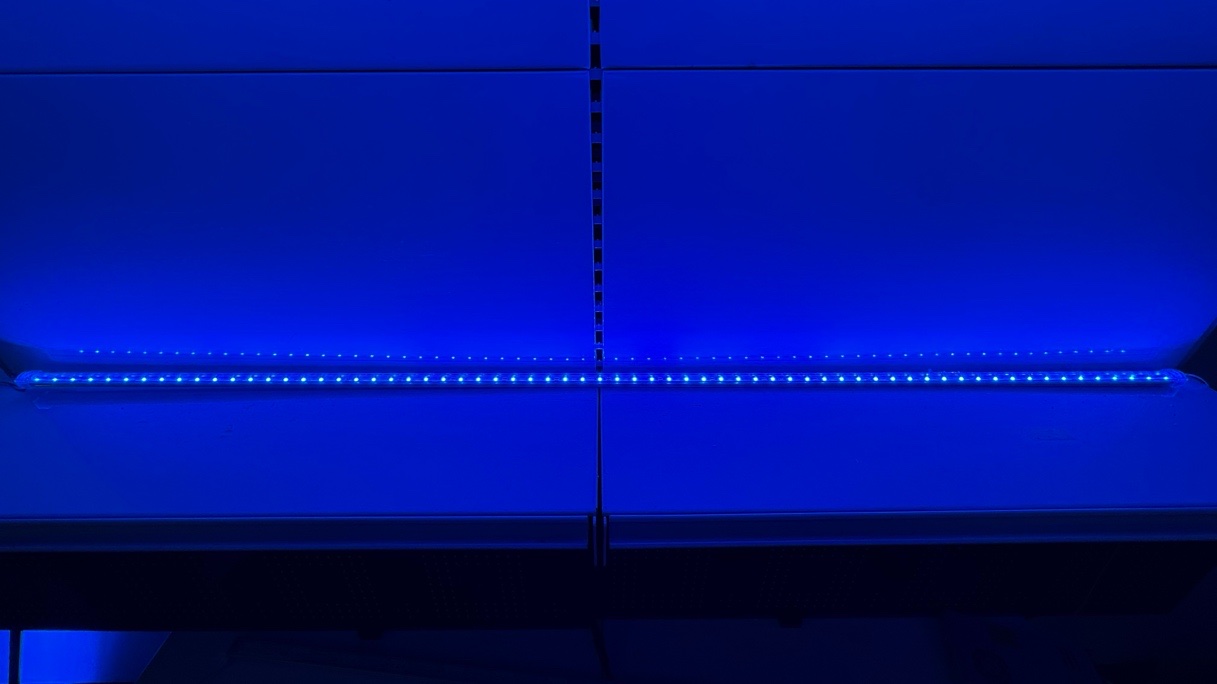

The build shown here is the 460~470 nm blue strip supplied for Petron forecourt edge lighting: 1350 mm per piece, 66 LEDs per metre, 12V DC. Runs are made up from these pieces, and there is no minimum order quantity, so a single fascia is as much of a job to us as a rollout.
Key Features
- 1350 mm per piece, made up to the run you need
- Blue 460~470 nm build shown
- Osram chip LEDs, 66 LEDs per metre
- Silicone-sealed in an aluminium profile, IP65
- 12V DC constant voltage, 35oz copper PCB
- Surface mounted by screw or blue double-sided tape
- No minimum order quantity
- QC-tested: US & German LEDs, 48-hour aging, vibration testing, then waterproofing checks
Electrical & mechanical specification
Figures below are for item AVS-F12T1350B66D-AL, the 1350 mm blue build. Tell us what the job needs and we will confirm what we can build for it.
| Item code | AVS-F12T1350B66D-AL |
|---|---|
| Application | Edge lighting |
| Package | 1350 mm per piece |
| LED type | Osram chip LED |
| LED diode | 2835 LEDs |
| LED quantity | 66 LEDs/m |
| Power per LED | 0.5W |
| Power per piece | 14W |
| Current | 1100mA per piece |
| Working voltage | 12V DC, constant voltage |
| Colour temperature | 460~470 nm (blue) |
| CRI | > 80 Ra |
| Lumens | 300~330 lm |
| Beam angle | 120° |
| Lighting method | PC cover |
| Material | Silicone + aluminium profile |
| Profile size | W17 x H9.1 mm |
| PCB | 35oz copper, 16 mm wide |
| Shell colour | Silver |
| End caps | Aluminium / plastic |
| Cable length | 200 mm |
| Protection rating | IP65 |
| Working / storage temperature | -20°C ~ 65°C |
| Weight | 0.2 kg per piece |
| Warranty | 3 years standard, extendable to 5 |
Surface mounted, screwed or taped
The strip mounts flat to the surface it lights. Screw it through the profile where the substrate takes a fixing, or bed it on the blue double-sided tape where it cannot be drilled. Aluminium or plastic end caps close both ends, and each piece carries a 200 mm lead-out cable.
Tell us the metres and we will come back with the piece count and the driver the run needs. There is no minimum order quantity, so one fascia is a job we will quote.
Where the edge strip fits
Anywhere a brand needs a clean line of colour that reads at night without lighting the whole surface.
- Forecourt canopy edges and fascia lines
- Signage returns and channel-letter edges
- Building outlines and feature edges
- Counter and shopfront edge lighting
Download the edge lighting strip datasheet
Full specification for the blue 1350 mm build, with the product photo.
Lighting an edge, a fascia or a canopy line?
Send us the run length and we will come back with the pieces and the driver it needs. There is no minimum order quantity.
