Osram 384 / 450 Lens Strip
Even signage backlight with optical lens control — a signage backlight / high evenness lighting solution.
Osram 384 / 450 Lens Strip
The Osram 384 and 450 Lens Strip is a high-performance signage backlighting solution designed to deliver strong brightness with excellent light uniformity. The integrated optical lens system distributes light evenly across signage surfaces, making it suitable even for shallow lightbox designs.
Built for modular installation, the strip is cuttable every 3 LEDs, allowing flexible site adaptation. The system is sealed with IP65 protection and UV-resistant epoxy to ensure long-term outdoor durability and stable optical performance.
Precision optics, modular build, sealed for outdoors
Designed to solve uneven backlighting issues in signage applications, the lens strip improves light distribution through precision optics. The modular structure ensures easy installation and customization, while the IP65 sealing protects against dust and water ingress. UV-resistant epoxy enhances durability under long-term outdoor exposure.
Electrical & Optical Specification
| Operating voltage | 24V DC |
|---|---|
| Protection rating | IP65 |
| Sealing | UV-resistant epoxy |
| Lens angle options | 175° / 160° |
| Cutting interval | Every 3 LEDs |
| Warranty | 3 years standard, extendable to 5 |
Osram 384-175 — full specification
Model OSR-384-175-12, the 175° wide-lens build. The 450-160 specification is published separately.
| LED type | Osram |
|---|---|

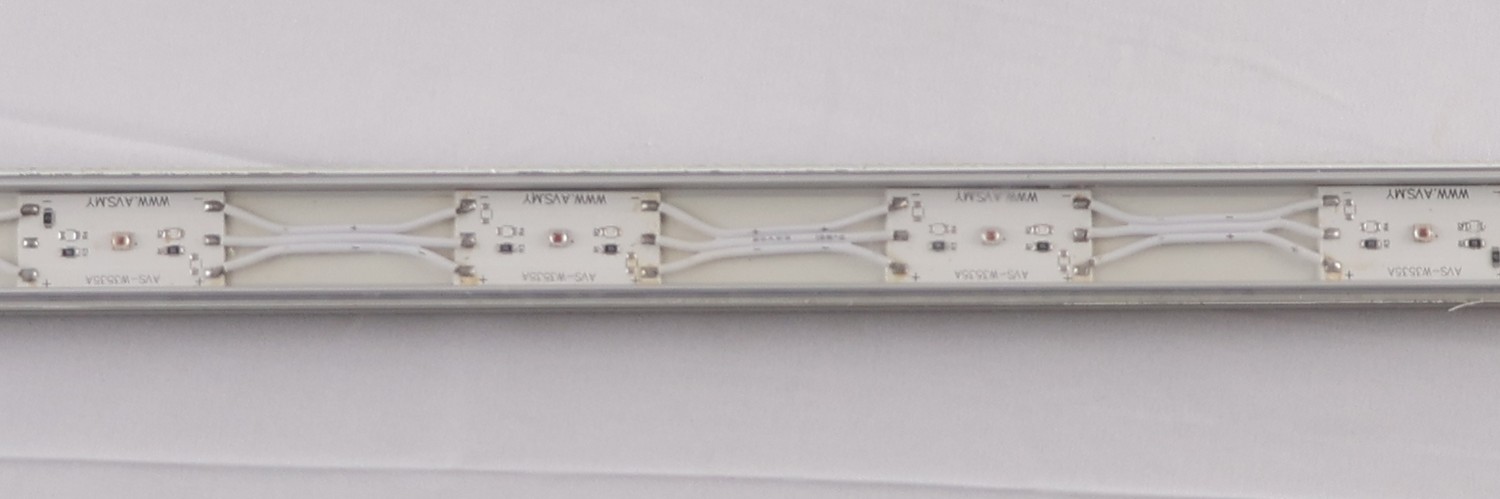

| Strip / PCB size | 384 mm x 18 mm metal core PCB (full strip length 1536 mm x 20 mm) |
| Power input | 24V DC |
| Colour temperature | 6500K |
| Optical lens | 175 degrees |
| Lumens per LED | 100 lm |
| Wattage | 1.2 watts / LED |
| Total watts per strip | 14.4 watts |
| Modular | Cuttable every 3 LEDs |
| Length variants | 384 mm single segment; 774 mm and 1165 mm multi-segment options; 1536 mm full strip |
| Tube material | Aluminium |
| Sealant | UV-resistant epoxy |
| IP rating | IP65 |
Cross-section through a lightbox. Same strip, same box depth d — only the lens angle changes.
Drawn to true beam angle, measured to the 50 % intensity edge — the standard beam-angle convention. Lit width is the geometric spread from a single strip before neighbouring strips overlap; real uniformity also depends on strip spacing and diffuser choice.

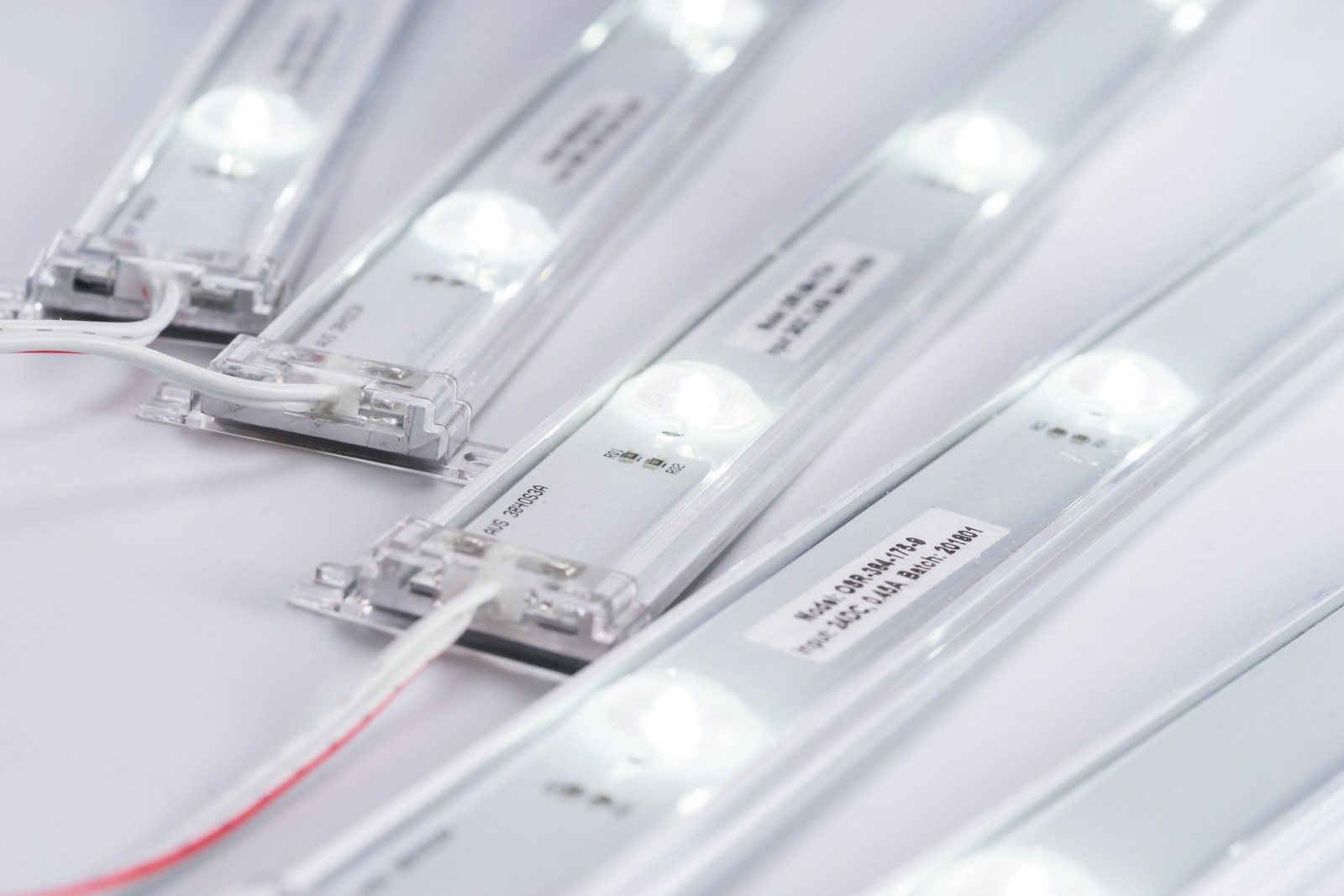

Cut every 3 LEDs to fit any lightbox

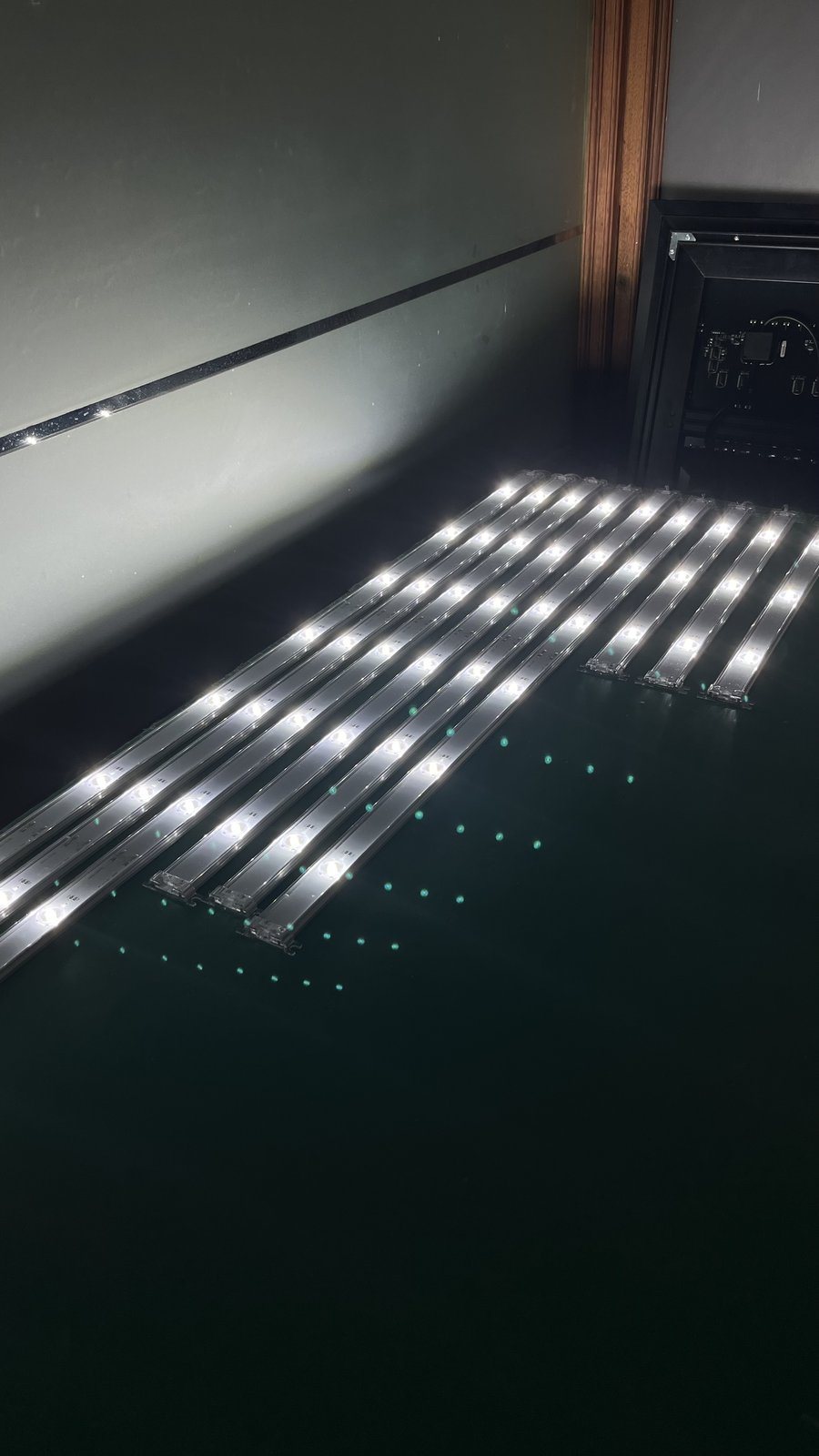

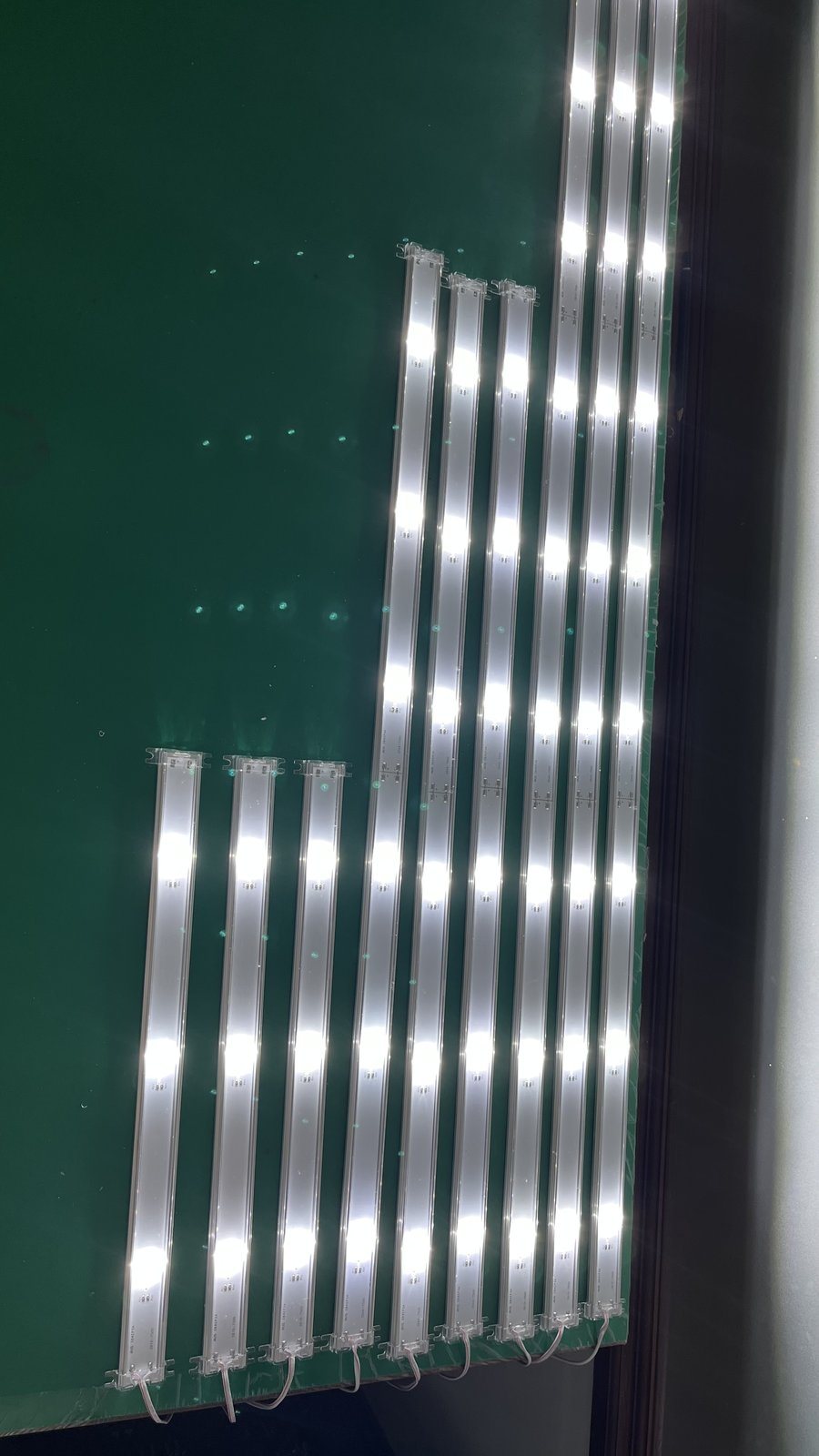

The strip is designed for modular signage fabrication, allowing installers to cut every 3 LEDs for precise fitting inside different lightbox sizes. Lens control ensures even illumination even in shallow depth signage, reducing hotspots and dark areas.
Where the lens strip fits
Ideal for illuminated signage, shopfront lightboxes, branding panels, and advertising displays requiring uniform backlighting performance with high visual clarity.
- Illuminated signage
- Shopfront lightboxes
- Branding panels
- Advertising displays
Technical drawings
Dimensional drawings for the Osram 384 / 450 Lens Strip — one combined PDF covering the complete strip assembly (602 mm with AVS end caps) plus the 384-175 and 450-160 modules, with section views and mounting details.
Download the LED Strip Backlight
Backlighting signage or a shallow lightbox?
Tell us your lightbox size and depth — we'll recommend the 384 or 450 lens strip and the lens angle to light it evenly, edge to edge.
